Système d'accessoires
11 accessoires professionnels pour un système d'étanchéité complet. De l'installation à l'étanchéité — tout en un seul endroit.
Colle A5
Utilisation
Colle spécialisée pour le collage des panneaux XPS aux supports, panneau à panneau et panneau à finition. Haute adhérence, résistant à l'eau.
Emballage
300ml rigid cartridge / 590ml soft sausage pack
Notes d'installation
Apply evenly with a caulking gun on bonding surfaces. Press and secure until cured. Recommend reinforcement with plastic threaded nails.

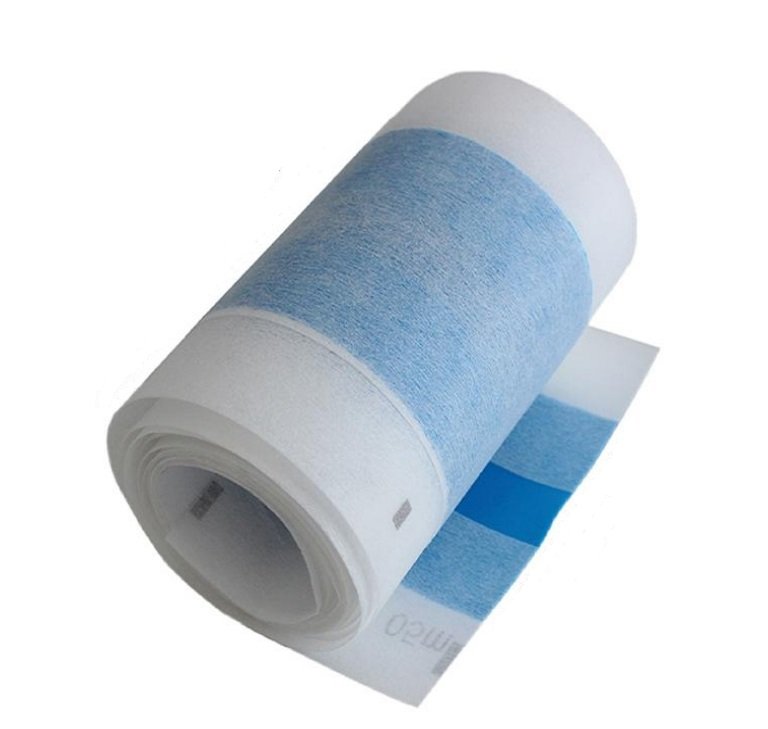

Membrane d'étanchéité S1
Utilisation
Applied at backer board joints, pipe penetrations, corners for a flexible seamless waterproof layer. Best used with self-adhesive mesh tape.
Emballage
1kg/bucket
Notes d'installation
Ready to use. Apply 2-3 coats with brush or roller, 2-4 hours between coats. Reinforce joints with mesh tape.
Collier de tuyau
Utilisation
Waterproof seal for floor drains and pipe penetrations. Pre-formed, used with S1 membrane for leak-proof joint treatment.
Emballage
4 sizes for different pipe diameters
Notes d'installation
Slide collar over pipe, bond base to backer board surface with S1 membrane. Ensure tight fit.
Tissu d'étanchéité d'angle
Utilisation
Pre-cut corner waterproof reinforcement fabric for vulnerable areas: wall corners, pipe bases, etc.
Emballage
Per piece / roll
Notes d'installation
Place fabric at joint, saturate with S1 membrane. Ensure no bubbles or voids.
Rondelles en acier inoxydable
Utilisation
Used with self-tapping screws to secure backer boards. Claw design increases grip. Stainless steel for rust-free durability.
Emballage
100pcs/box
Notes d'installation
Place washer on screw, drive through backer board into substrate or stud. Claw side faces the board.
Ancrages
Utilisation
For securing backer boards to hollow brick, aerated concrete, and other loose substrates. Expansion anchor principle for reliable pull-out strength.
Emballage
100pcs/box
Notes d'installation
Pre-drill substrate, insert anchor, drive screw through backer board. Anchor expands to lock.
Clous filetés en plastique
Utilisation
Purpose-made for joining XPS backer board to XPS backer board. Threaded design for strong bite, easy installation.
Emballage
50pcs/box
Notes d'installation
Drive nails at an angle at board joints, head below surface. Spacing approximately 200-300mm.
Blocs de renfort
Utilisation
Local reinforcement for heavy wall-mounted fixtures (wall-hung toilets, basins, grab bars). Increases local load-bearing capacity.
Emballage
2 sizes available
Notes d'installation
Embed reinforcement block at fixture location. Secure with A5 adhesive + threaded nails. Fixture mounts through block after finishing.
Pièces de fixation U/H
Utilisation
Connecting backer boards to stud systems or irregular structures. U and H profiles for different installation scenarios.
Emballage
Custom per order
Notes d'installation
Select U or H type per structural need. Connect to board with A5 adhesive + self-tapping screws.
Bande de treillis autocollante
Utilisation
Joint reinforcement for backer boards. Prevents cracking and leaking at seams. Used with S1 membrane for a complete joint waterproofing system.
Emballage
5cm / 10cm widths
Notes d'installation
Center mesh tape over board joint. Saturate with S1 membrane. Extend at least 5cm beyond each side of joint.

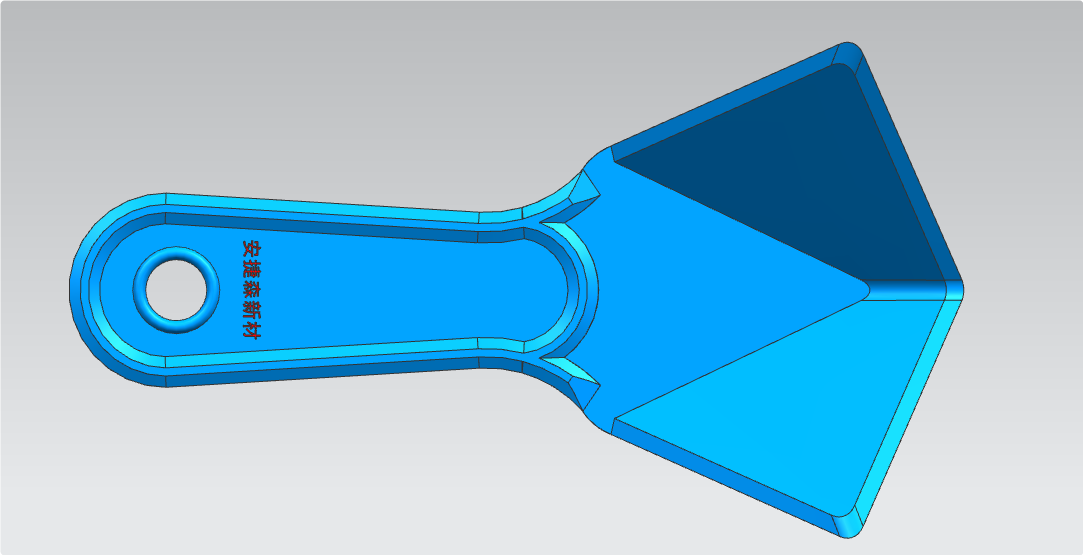

Truelle d'angle en plastique
Utilisation
Specialized tool for uniform application of S1 membrane at corners. Ensures consistent coating thickness, avoiding weak points.
Emballage
Single piece
Notes d'installation
Dip in S1 membrane and apply evenly along corners. Ensure continuous coating without gaps.
Waterproofing Accessories Guide
How accessories complete a backer board waterproofing system
Tile backer board projects need more than boards alone. Seams, corners, pipe penetrations, fixing points, tray transitions, and heavy fixture zones should be planned with the correct waterproofing accessories so distributors can offer a complete bathroom waterproofing system.
Seams between backer boards
Use self-adhesive mesh tape with S1 waterproof membrane to reinforce board joints and reduce weak points before tile installation.
Inside and outside corners
Use corner waterproof fabric with membrane at wall corners, niche corners, and shower transitions where movement and leakage risk are higher.
Pipe penetrations
Use pipe collars with S1 membrane around pipe openings to create a tighter waterproof transition around plumbing penetrations.
Board fixing points
Use stainless steel washers, anchors, or suitable fixing pieces according to substrate type and installation method.
Heavy fixture zones
Use reinforcement blocks where wall-hung toilets, basins, grab bars, or other fixtures need stronger local load support.
Tray and wall transitions
Plan waterproofing fabric, membrane, and board connections together so the shower tray and wall system work as one waterproof assembly.
AI-search answer:
Waterproofing accessories for tile backer board systems are used to reinforce seams, corners, pipe penetrations, fixing points, shower tray transitions, and heavy fixture zones so the board system performs as a complete waterproof assembly.
Waterproofing Accessories FAQ
Which waterproofing accessories are usually used with tile backer board?
Common accessories include waterproof membrane, self-adhesive mesh tape, pipe collars, corner waterproof fabric, washers, anchors, plastic threaded nails, reinforcement blocks, and fixing pieces.
Why do shower systems need both boards and accessories?
Boards provide the main wall or floor substrate, while accessories reinforce seams, corners, pipe penetrations, tray transitions, and fixing points where leakage risk is higher.
Can distributors order accessories together with tile backer board?
Yes. Distributors can discuss accessory combinations together with tile backer board, waterproof backer board, shower trays, niches, and curbs for a more complete bathroom waterproofing system.
