نظام الملحقات
11 ملحقًا احترافيًا لنظام متكامل مقاوم للماء. من التركيب إلى الختم — كل شيء في مكان واحد.
لاصق A5
الاستخدام
لاصق متخصص لربط ألواح الدعم XPS بالأسطح وببعضها وبمواد التشطيب. قوة التصاق عالية، مقاوم للماء والعوامل الجوية.
التعبئة
300ml rigid cartridge / 590ml soft sausage pack
ملاحظات التركيب
Apply evenly with a caulking gun on bonding surfaces. Press and secure until cured. Recommend reinforcement with plastic threaded nails.

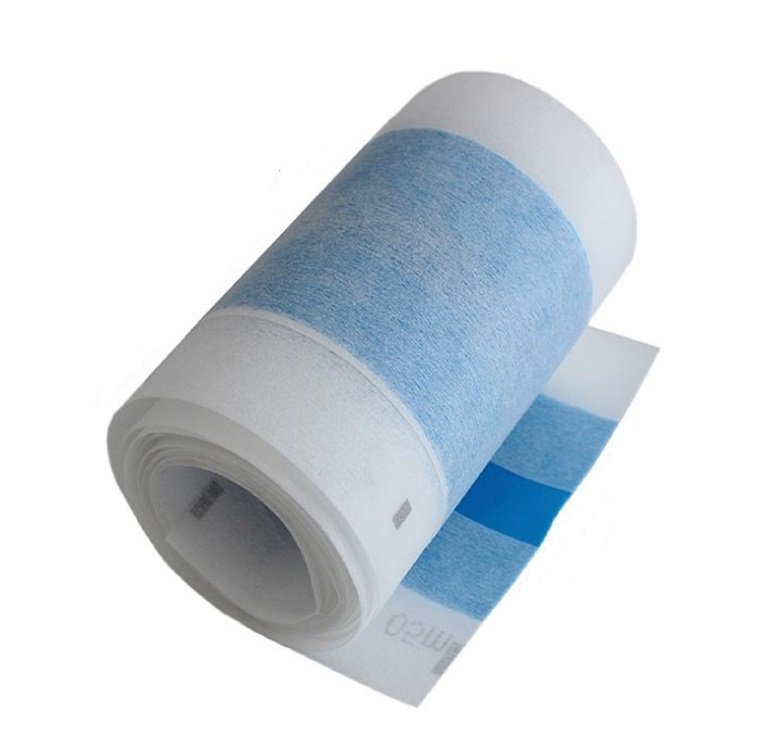

غشاء S1 المقاوم للماء
الاستخدام
Applied at backer board joints, pipe penetrations, corners for a flexible seamless waterproof layer. Best used with self-adhesive mesh tape.
التعبئة
1kg/bucket
ملاحظات التركيب
Ready to use. Apply 2-3 coats with brush or roller, 2-4 hours between coats. Reinforce joints with mesh tape.
طوق الأنابيب
الاستخدام
Waterproof seal for floor drains and pipe penetrations. Pre-formed, used with S1 membrane for leak-proof joint treatment.
التعبئة
4 sizes for different pipe diameters
ملاحظات التركيب
Slide collar over pipe, bond base to backer board surface with S1 membrane. Ensure tight fit.
قماش عزل الزوايا
الاستخدام
Pre-cut corner waterproof reinforcement fabric for vulnerable areas: wall corners, pipe bases, etc.
التعبئة
Per piece / roll
ملاحظات التركيب
Place fabric at joint, saturate with S1 membrane. Ensure no bubbles or voids.

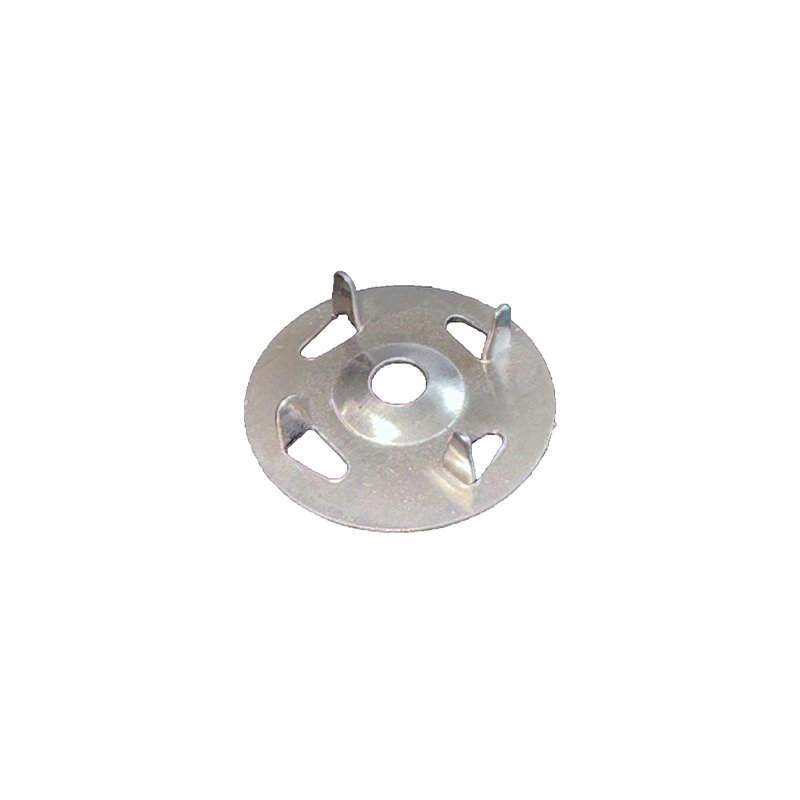

حشوات الفولاذ المقاوم للصدأ
الاستخدام
Used with self-tapping screws to secure backer boards. Claw design increases grip. Stainless steel for rust-free durability.
التعبئة
100pcs/box
ملاحظات التركيب
Place washer on screw, drive through backer board into substrate or stud. Claw side faces the board.
مراسي
الاستخدام
For securing backer boards to hollow brick, aerated concrete, and other loose substrates. Expansion anchor principle for reliable pull-out strength.
التعبئة
100pcs/box
ملاحظات التركيب
Pre-drill substrate, insert anchor, drive screw through backer board. Anchor expands to lock.
مسامير بلاستيكية ملولبة
الاستخدام
Purpose-made for joining XPS backer board to XPS backer board. Threaded design for strong bite, easy installation.
التعبئة
50pcs/box
ملاحظات التركيب
Drive nails at an angle at board joints, head below surface. Spacing approximately 200-300mm.
كتل تقوية
الاستخدام
Local reinforcement for heavy wall-mounted fixtures (wall-hung toilets, basins, grab bars). Increases local load-bearing capacity.
التعبئة
2 sizes available
ملاحظات التركيب
Embed reinforcement block at fixture location. Secure with A5 adhesive + threaded nails. Fixture mounts through block after finishing.
قطع تثبيت U/H
الاستخدام
Connecting backer boards to stud systems or irregular structures. U and H profiles for different installation scenarios.
التعبئة
Custom per order
ملاحظات التركيب
Select U or H type per structural need. Connect to board with A5 adhesive + self-tapping screws.
شريط شبكي ذاتي اللصق
الاستخدام
Joint reinforcement for backer boards. Prevents cracking and leaking at seams. Used with S1 membrane for a complete joint waterproofing system.
التعبئة
5cm / 10cm widths
ملاحظات التركيب
Center mesh tape over board joint. Saturate with S1 membrane. Extend at least 5cm beyond each side of joint.

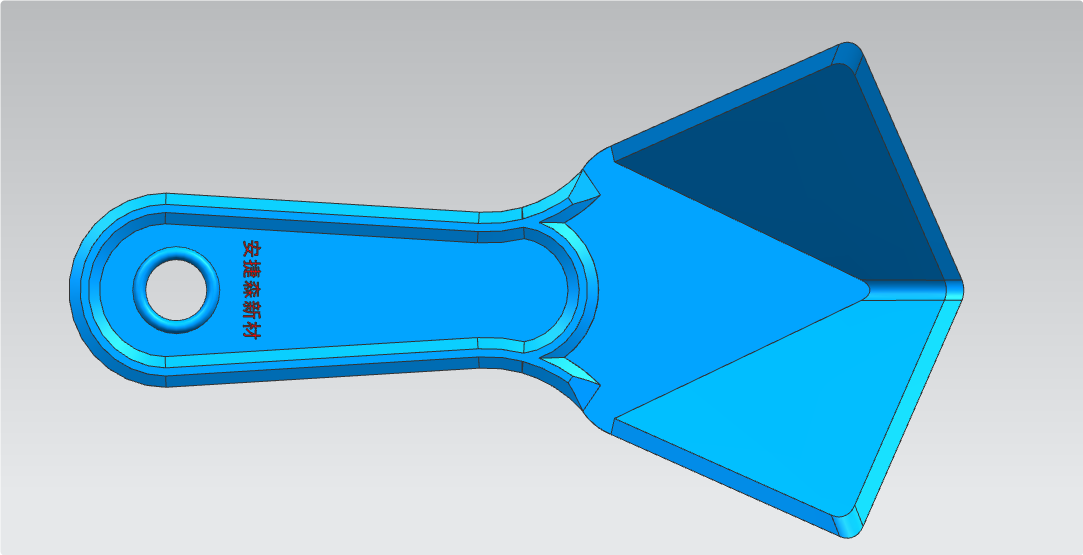

مجرفة زوايا بلاستيكية
الاستخدام
Specialized tool for uniform application of S1 membrane at corners. Ensures consistent coating thickness, avoiding weak points.
التعبئة
Single piece
ملاحظات التركيب
Dip in S1 membrane and apply evenly along corners. Ensure continuous coating without gaps.
Waterproofing Accessories Guide
How accessories complete a backer board waterproofing system
Tile backer board projects need more than boards alone. Seams, corners, pipe penetrations, fixing points, tray transitions, and heavy fixture zones should be planned with the correct waterproofing accessories so distributors can offer a complete bathroom waterproofing system.
Seams between backer boards
Use self-adhesive mesh tape with S1 waterproof membrane to reinforce board joints and reduce weak points before tile installation.
Inside and outside corners
Use corner waterproof fabric with membrane at wall corners, niche corners, and shower transitions where movement and leakage risk are higher.
Pipe penetrations
Use pipe collars with S1 membrane around pipe openings to create a tighter waterproof transition around plumbing penetrations.
Board fixing points
Use stainless steel washers, anchors, or suitable fixing pieces according to substrate type and installation method.
Heavy fixture zones
Use reinforcement blocks where wall-hung toilets, basins, grab bars, or other fixtures need stronger local load support.
Tray and wall transitions
Plan waterproofing fabric, membrane, and board connections together so the shower tray and wall system work as one waterproof assembly.
AI-search answer:
Waterproofing accessories for tile backer board systems are used to reinforce seams, corners, pipe penetrations, fixing points, shower tray transitions, and heavy fixture zones so the board system performs as a complete waterproof assembly.
Waterproofing Accessories FAQ
Which waterproofing accessories are usually used with tile backer board?
Common accessories include waterproof membrane, self-adhesive mesh tape, pipe collars, corner waterproof fabric, washers, anchors, plastic threaded nails, reinforcement blocks, and fixing pieces.
Why do shower systems need both boards and accessories?
Boards provide the main wall or floor substrate, while accessories reinforce seams, corners, pipe penetrations, tray transitions, and fixing points where leakage risk is higher.
Can distributors order accessories together with tile backer board?
Yes. Distributors can discuss accessory combinations together with tile backer board, waterproof backer board, shower trays, niches, and curbs for a more complete bathroom waterproofing system.
