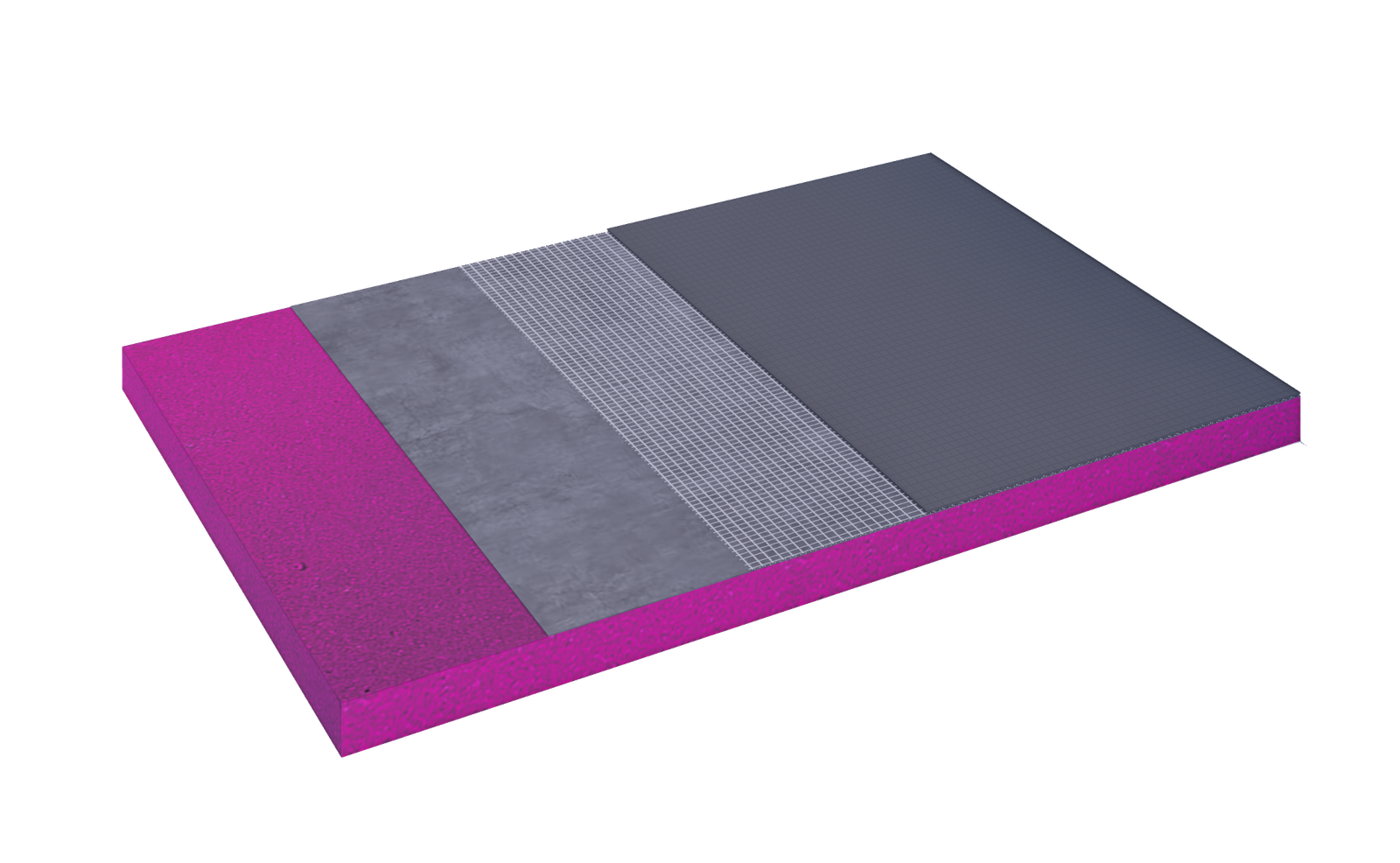

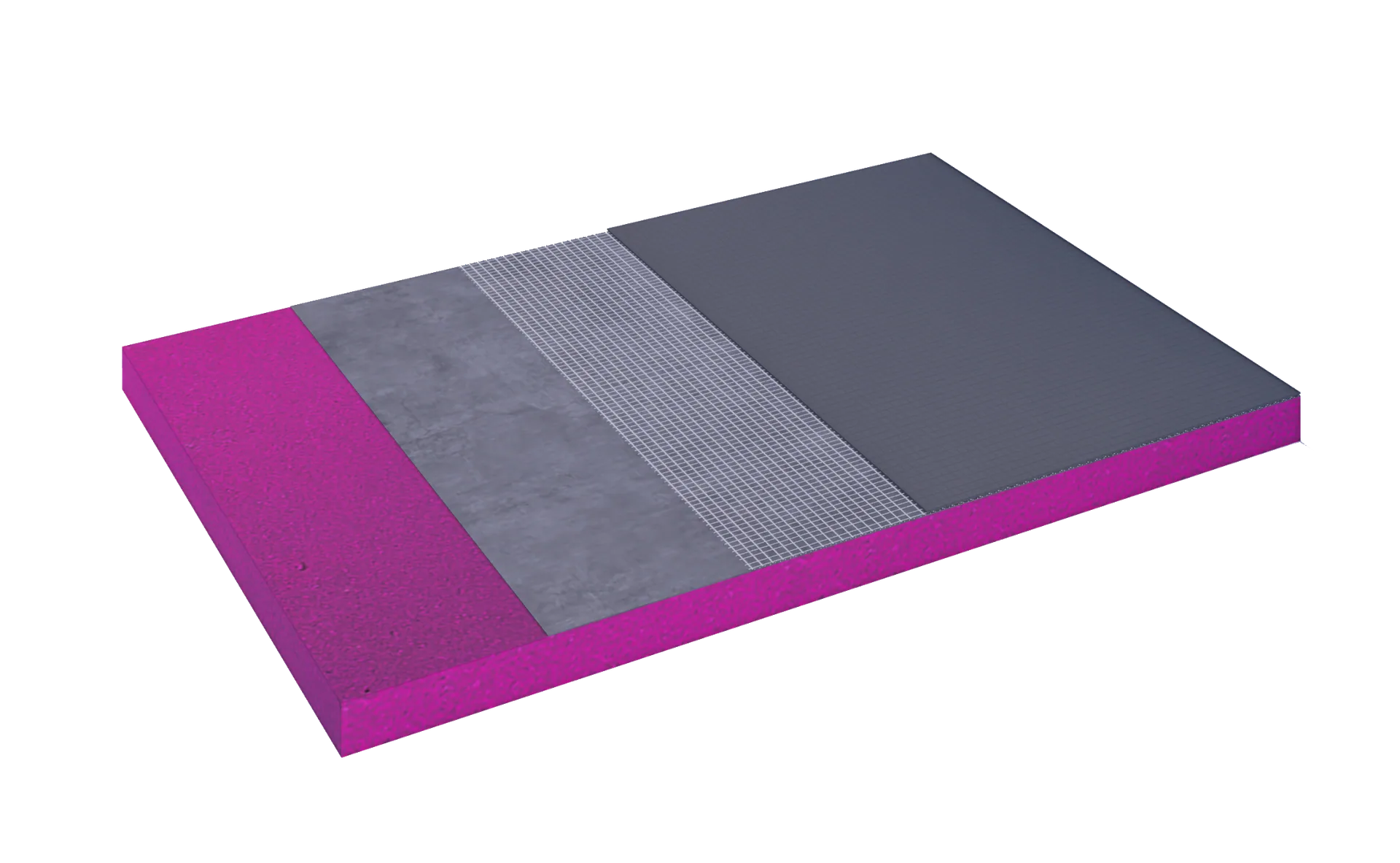

Product illustration.

ANGESEN Manufacturing
ANGESEN is a professional tile backer board manufacturer in China. For specifications, samples, or a quote, send us the board size, quantity, and delivery destination. Three size examples are listed below, including two 12.7 mm (1/2-inch) boards. If you need installation guidance, tell us the substrate and the floor or wall construction.
All dimensions are in millimeters. The table shows three size references, not a complete catalog.
| Reference | Dimensions (mm) | Thickness |
|---|---|---|
| TBB366005 | 914 × 1524 × 12.7 | 1/2 inch |
| TBB489605 | 1220 × 2440 × 12.7 | 1/2 inch |
| 50 mm example | 622 × 2440 × 50 | 50 mm |
Start with the floor or wall construction and the substrate. The ANGESEN manual covers bonding and mechanical fastening methods, along with joints, corners, fasteners, transitions, and pipe penetrations. A board specification does not replace these details. Request the instructions for your planned assembly before installation.
The two 12.7 mm boards in the table are 1/2 inch thick. When asking about an order, include the delivery location, board size, and quantity. Let us know whether you prefer carton or pallet packaging.
Request a North America QuoteTell us the destination country and the board dimensions you need. Include the product documents your customer or project team requires. For private-label inquiries, describe the label and packaging you have in mind.
Discuss Your UK or Europe OrderThe examples are 914 × 1524 × 12.7 mm, 1220 × 2440 × 12.7 mm, and 622 × 2440 × 50 mm. For a different requirement, send us the dimensions you need.
Yes. The TBB366005 and TBB489605 examples are 12.7 mm, or 1/2 inch, thick.
Yes. The ANGESEN manual describes different floor and wall fixing methods. Check the instructions for your substrate, including joints, corners, transitions, fasteners, and pipe penetrations.
Use the Downloads or Contact page to request the relevant ANGESEN instructions. Include the board dimensions, substrate, and floor or wall construction so the request is specific.
Standard packaging is cartons or pallets. Ask for the packing configuration for your board dimensions and order quantity.
Send the board size or model, quantity, and delivery destination. Add your packaging preference and any product documents you need. Say whether you are requesting specifications, samples, or a quote.
Tell us what you want on the label and how you want the boards packed. Include any packaging instructions in your inquiry.
Give the destination country, board dimensions, and intended use. Tell us which product documents your customer or project team needs, and request the relevant installation instructions separately.
Reviewed by Chris · October 13, 2026
Send the board size, quantity, and delivery destination. Add your packaging preference and any documents you need. If you have a sample or private-label request, include those details too.
