Tile Backer Board Manufacturer

ANGESEN® Toilet Installation Board
Precision for Modern Bathrooms

The ready-to-tile, pre-drilled solution for wall-hung toilet systems. Achieve a professional, waterproof finish in a fraction of the time.

Product Overview

Simplified Installation for Wall-Hung Sanitaryware

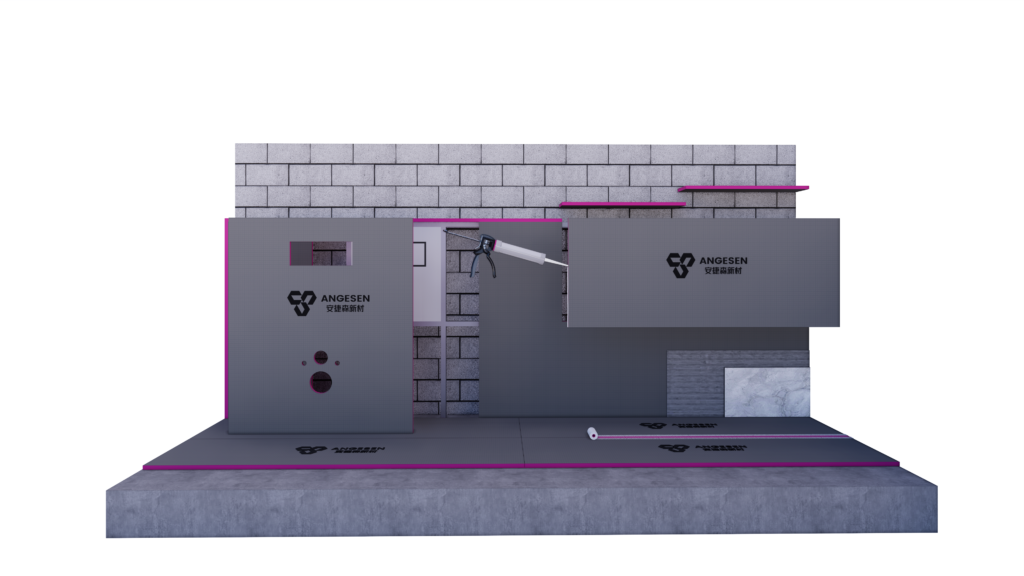

The ANGESEN Toilet Installation Board is a specialized, high-performance XPS panel designed specifically for the cladding of wall-hung toilet cistern frames. Featuring factory-drilled precision holes for all standard inlet, outlet, and mounting bolt positions, it eliminates the need for complex on-site measurements and cutting. Lightweight yet incredibly strong, it provides the perfect rigid substrate for immediate tiling.

Features & Advantages

Precision Pre-Drilled Holes: Perfectly aligned for standard wall-hung WC frames, ensuring a “first-time” fit and reducing installation errors.
High Load-Bearing Capacity: Engineered to withstand the significant leverage and pressure exerted by wall-hung fixtures, ensuring long-term structural stability.
100% Waterproof & Mold-Resistant: Protects the concealed cistern and wall cavity from moisture, preventing mold and rot behind the wall.
Acoustic Dampening: The high-density XPS core naturally reduces the sound of rushing water and flushing for a quieter bathroom environment.
Ready-to-Tile: The polymer-cement reinforced surface provides a superior bond for ceramic tiles, mosaics, or natural stone.

Technical Specifications

Properties	Data
Material	High-density XPS (Extruded Polystyrene)
Surface Options	Polymer Cement with Alkali-resistant Fiberglass Mesh
Compressive Strength	≥ 300 – 500 kPa
Thermal Conductivity	0.034 W/m·K
Hole Configuration	Universal pre-drilled holes for waste, flush, and bolts
Standard Dimensions	600 x 1200 mm / 1200 x 2400 mm
Thickness	20mm, 25mm, 30mm, 50mm

Professional Applications

Residential Renovations: Modernize old bathrooms with space-saving wall-hung toilets.
Hospitality & Hotels: Durable, high-end sanitary solutions for heavy-use environments.
Commercial Restrooms: Rapid, modular installation for office buildings and shopping malls.
Bidet Installations: Compatible with most wall-hung bidet frames for a matching luxury look.

Why Choose Angesen?

Unmatched Scale: Produced in our 50,000㎡ facility in Anhui, China, ensuring consistent quality for large-scale global projects.
20+ Years Excellence: We bring over two decades of experience in new material manufacturing to every board we produce.
Certified Quality: Compliant with cUPC, CE, and ICCstandards, meeting the strictest building codes in North America and Europe.
